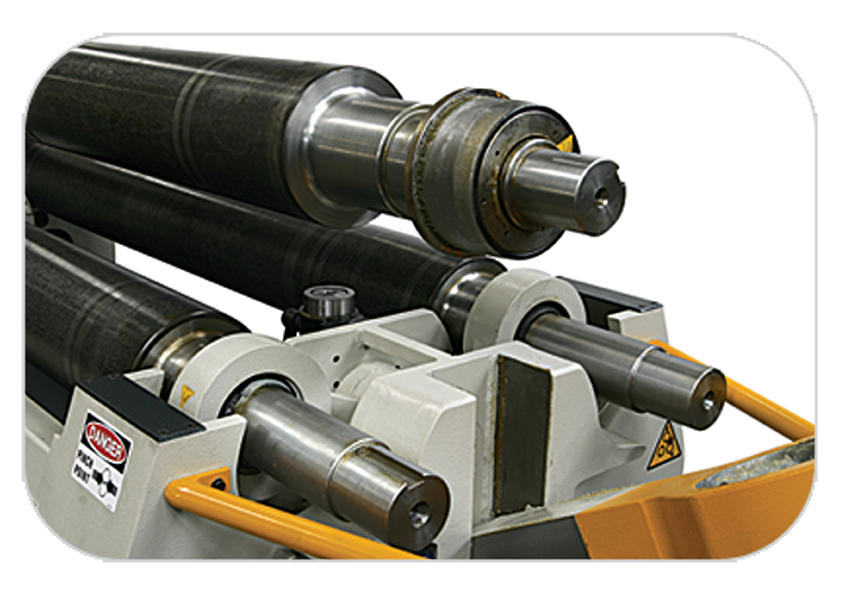

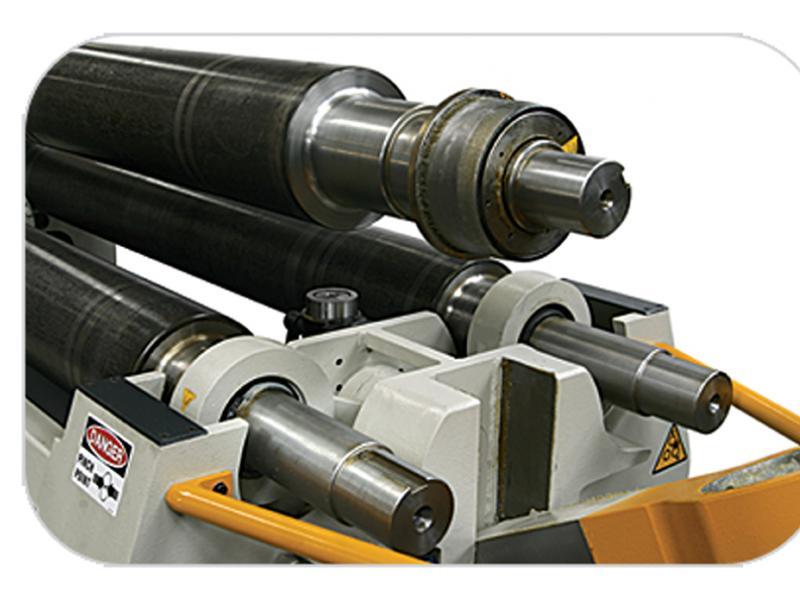

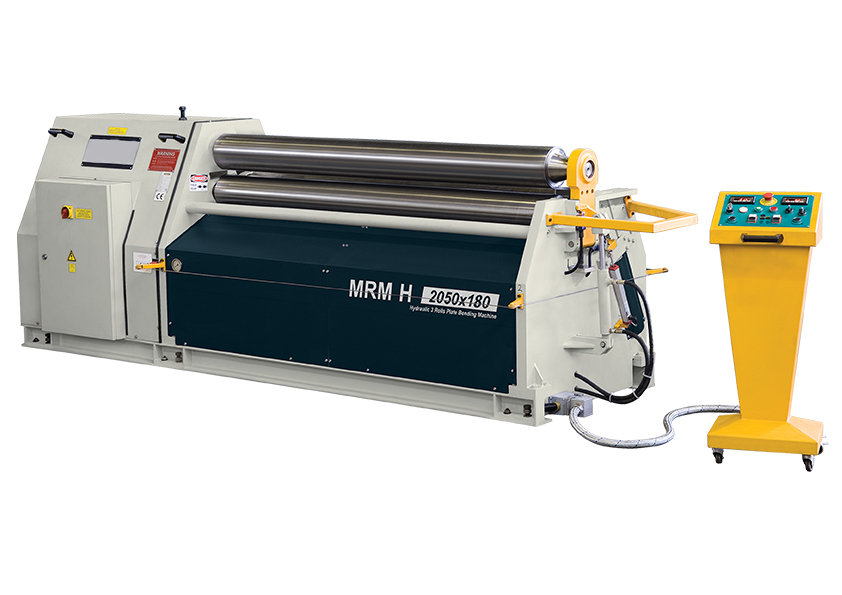

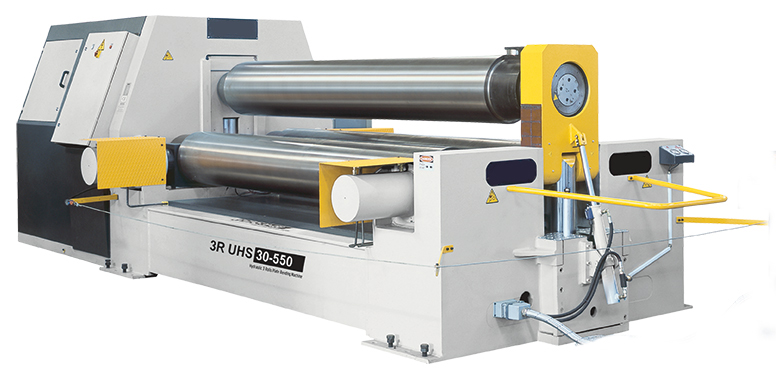

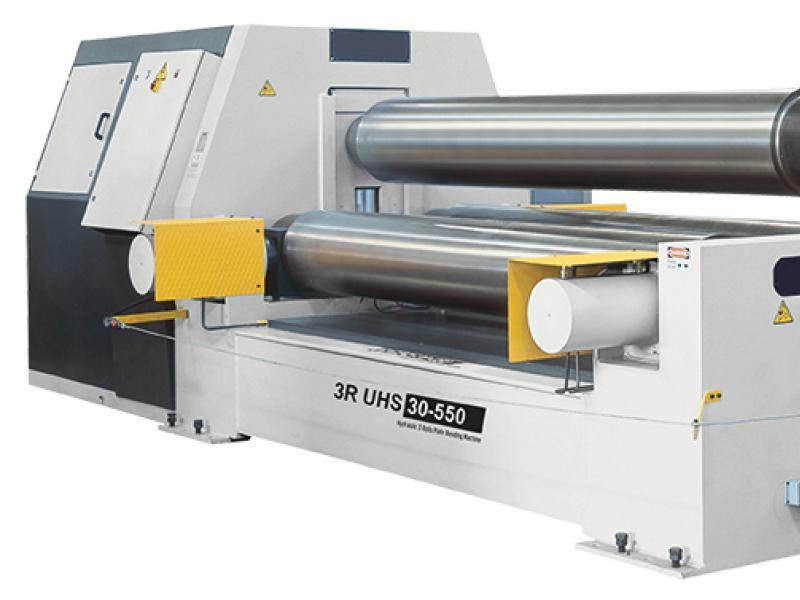

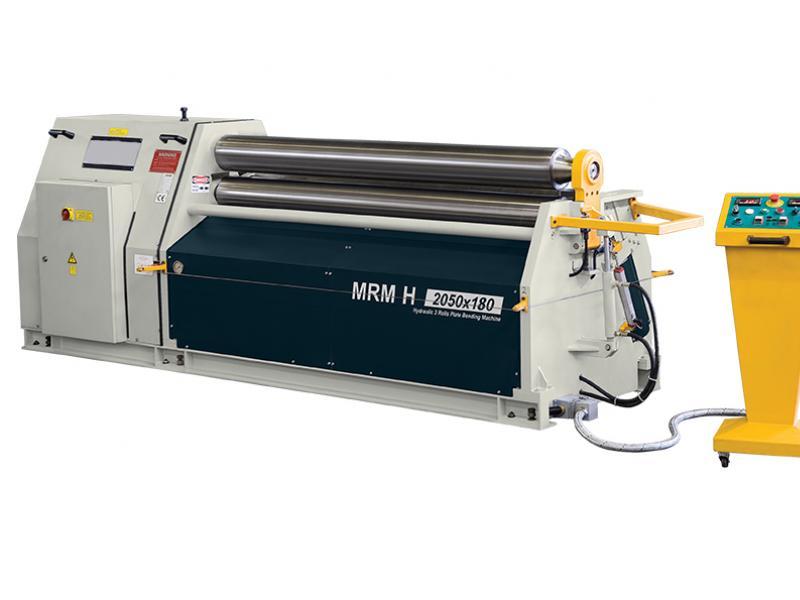

3 Rolls Plate Bending Machine


▶ Very suitable for medium and heavy plates, aluminum or stainless steel bending
▶ Ferrules in full circle or varying radiuses can be done easily
▶ Lateral rolls move linear way with hydraulic pistons
▶ Overload protection
▶ Lateral rolls and top roll is powered by hydromotor and planetary gearbox ( 3 rolls driven )
▶ Hydraulic Drop-End for easy removal of finished ferrule
▶ Easy operation with mobile control panel
▶ Two digital readouts for easy roll positioning of bottom rolls
▶ Welded steel frames
▶ Induction hardened forged or rolled SAE 1050 (CK 45) steel rolls
▶ Conical bending device with ball bearing
▶ Central lubrication system
▶ Hydraulic balancing system
▶ Electronic balancing system ( Ø 500 - 550 )
▶ Double speed working system
▶ Extended roll shafts for profile and pipe bending operation
▶ Overhead crane for large diameters
▶ Hydraulic lateral side supports for large diameters
▶ Ground and polished rolls for special jobs
▶ Section - profile bending rolls set
▶ Electronic balancing system (Ø320 -350 -380 -420 -460)
