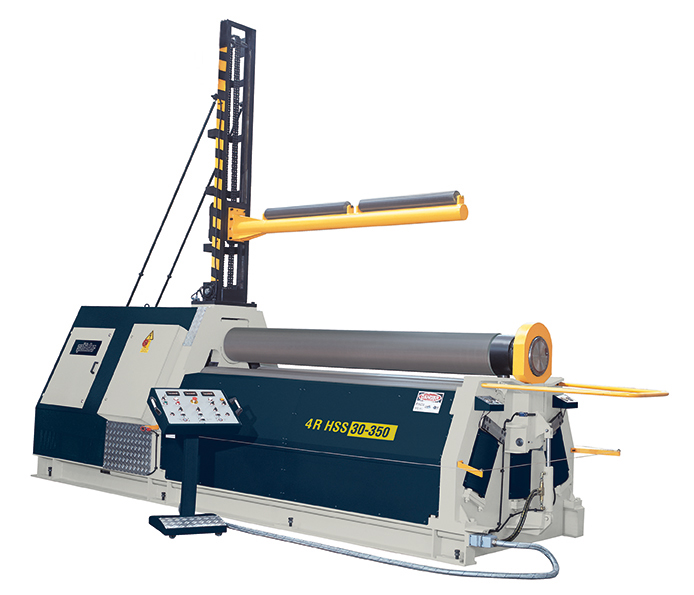

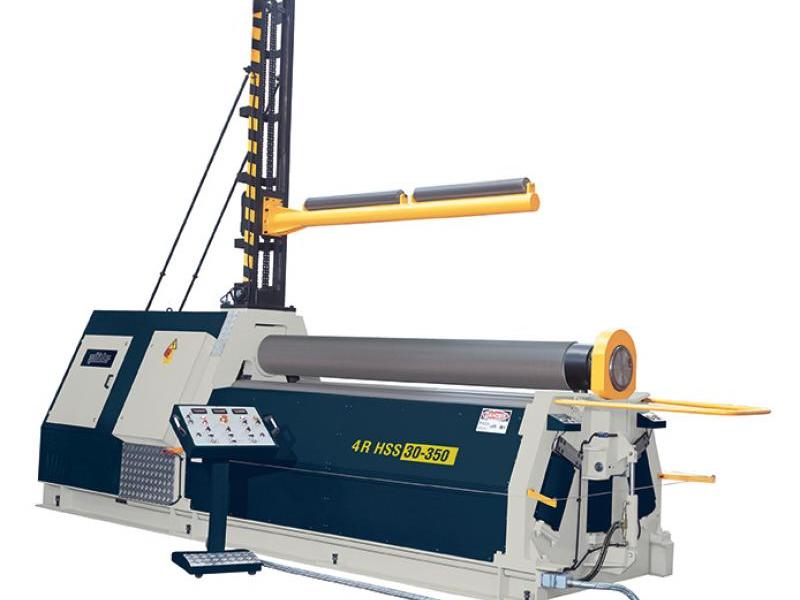

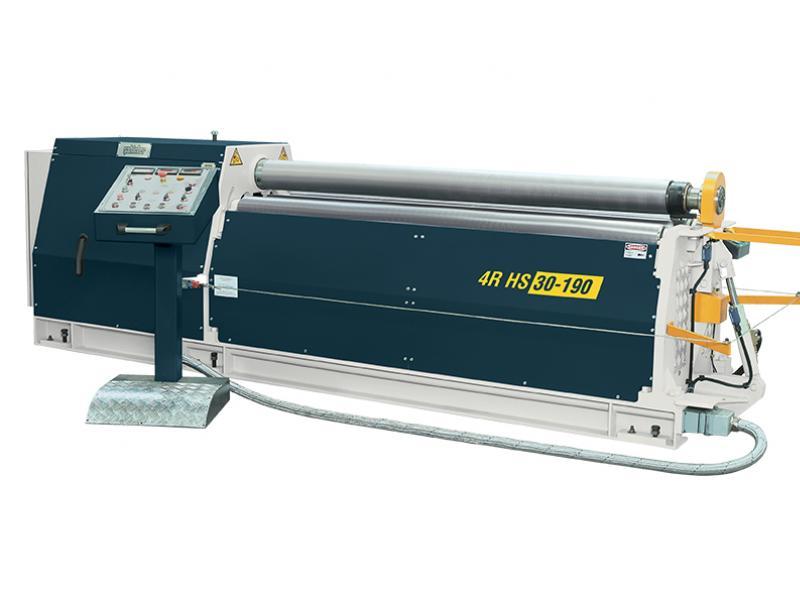

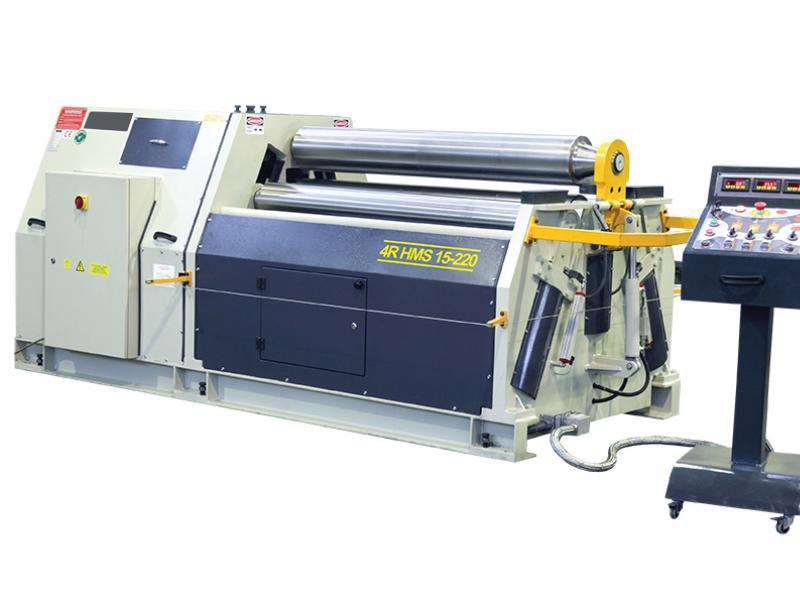

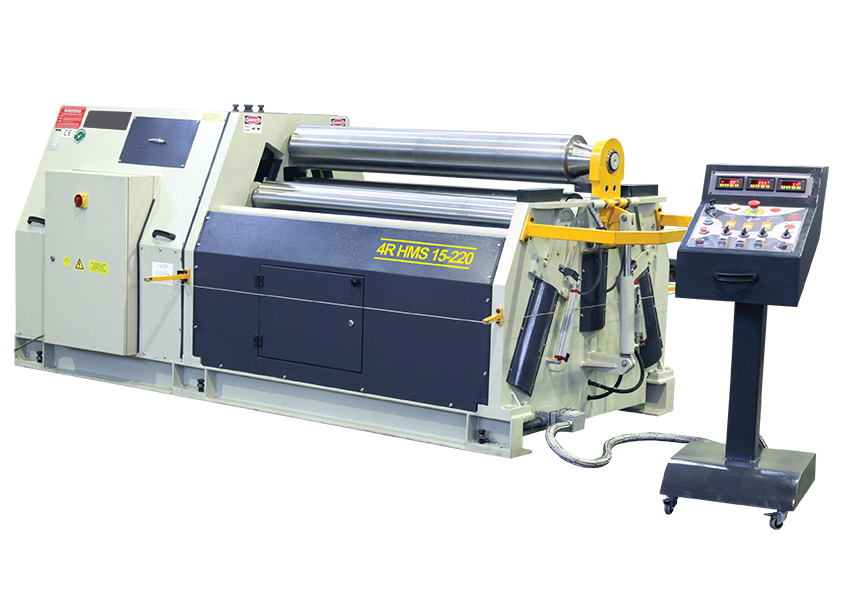

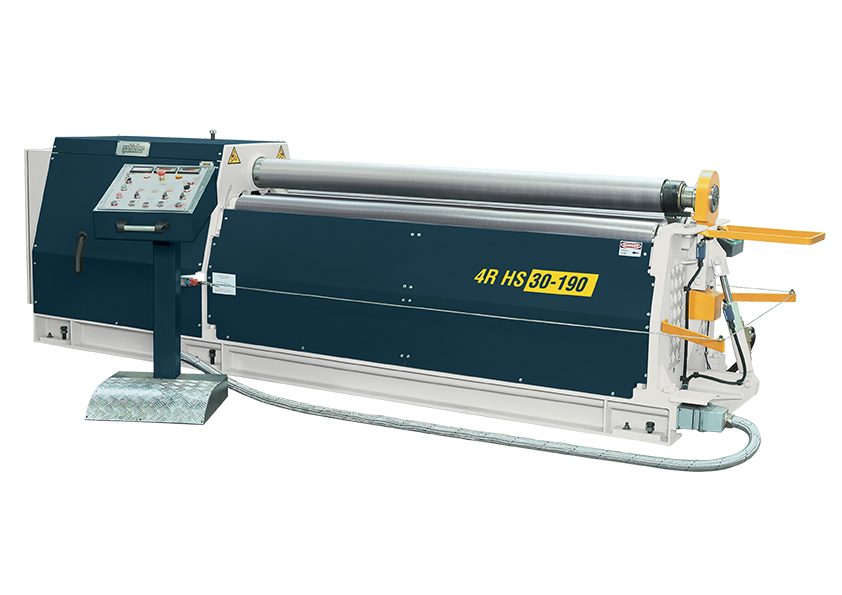

4 Rolls Plate Bending Machine

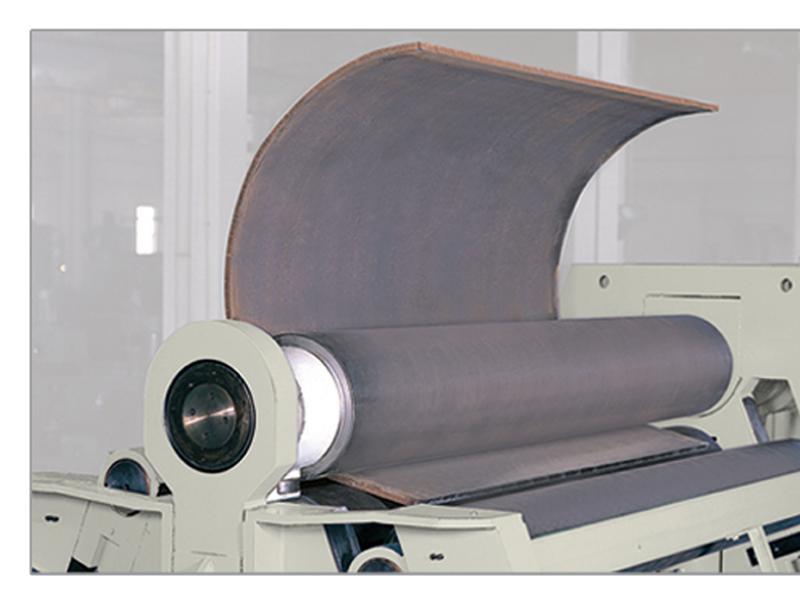

▶ Very suitable for medium and heavy plates or stainless steel bending

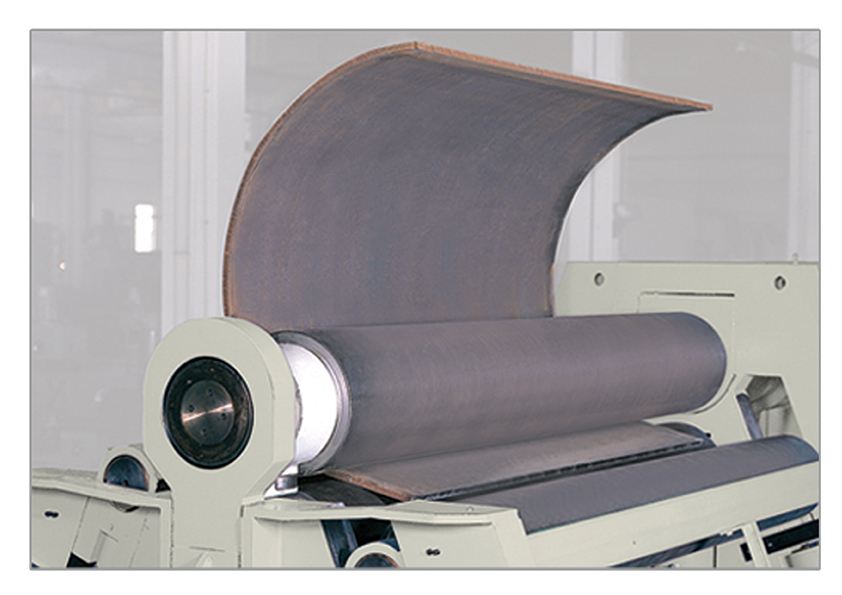

▶ Ferrules in full circle or varying radiuses can be done easily
▶ Pinch roll and lateral rolls move pyramidal linear with hydraulic pistons
▶ Overload Protection

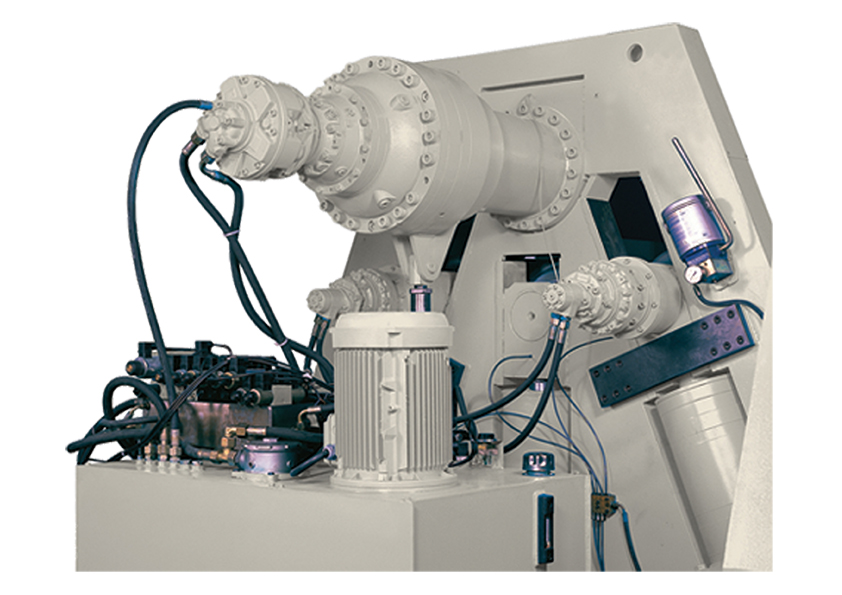

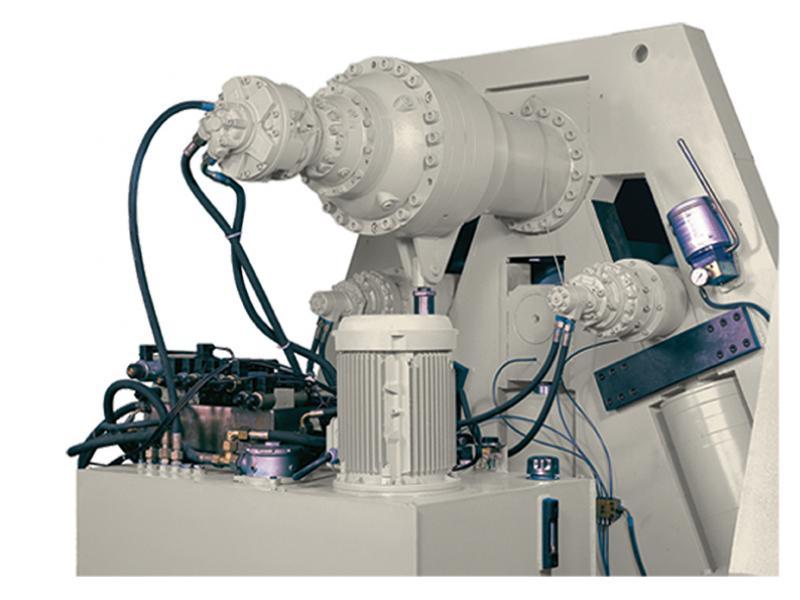

▶ Top Roll and Lateral Rolls are powered by hydromotor and planetary gearbox ( 3 roll driven system )
▶ Three digital readouts for easy roll positioing
▶ Hydraulic tiltable Drop-End for easy removal of finished ferrule
▶ Easy operation with mobile control panel
▶ Welded steel frames

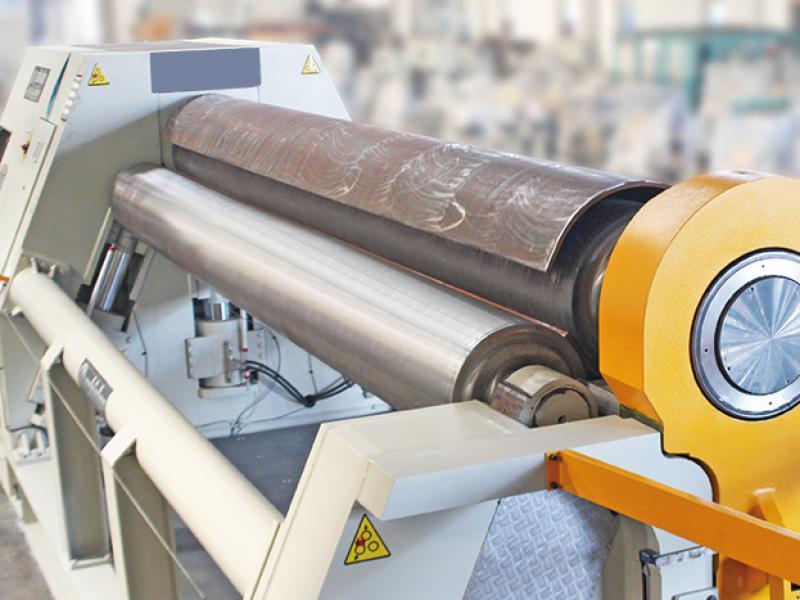

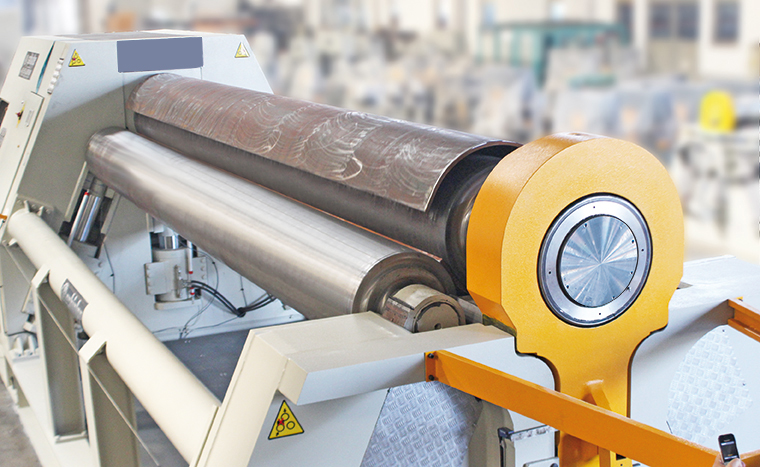

▶ Induction hardened forged SAE 1050 (CK 50) Steel rolls

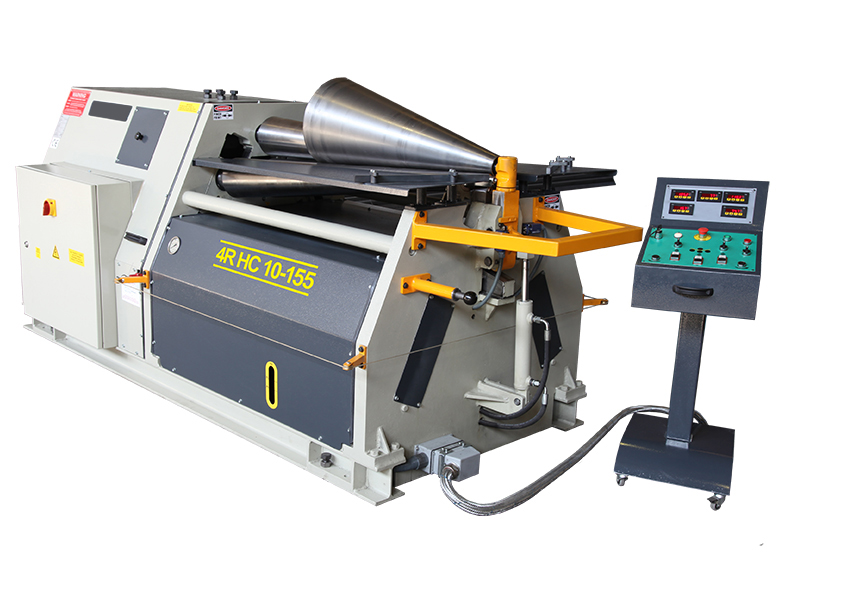

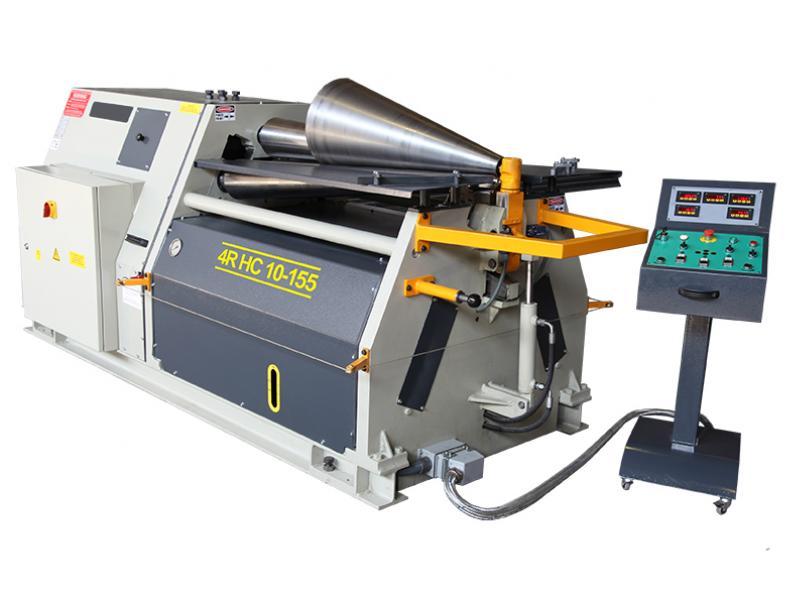

▶ Conical bending device
▶ Central lubrication system
▶ Hydraulic balancing system (Ø280-320-350-380-400-460)
▶ Electronic balancing system (Ø500 -550 -580 -620 -680)
▶ Double speed working system

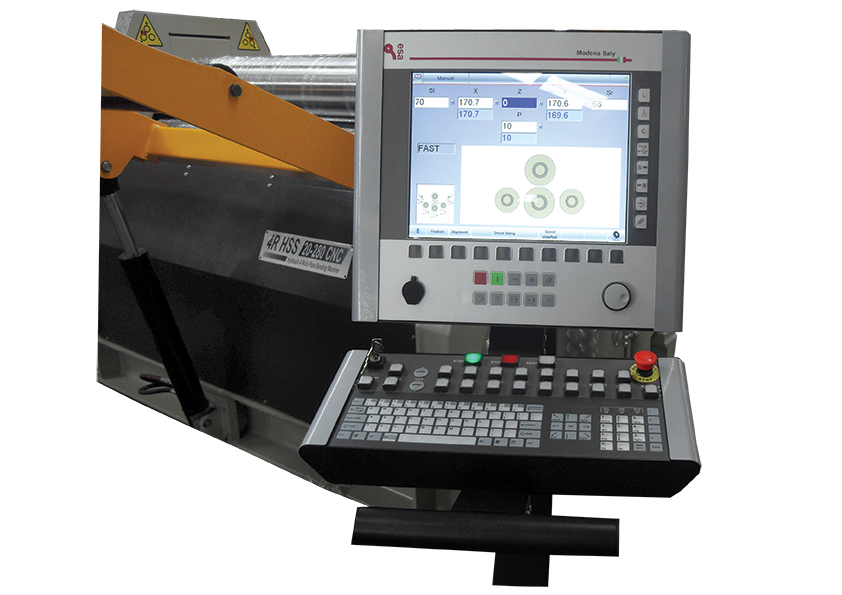

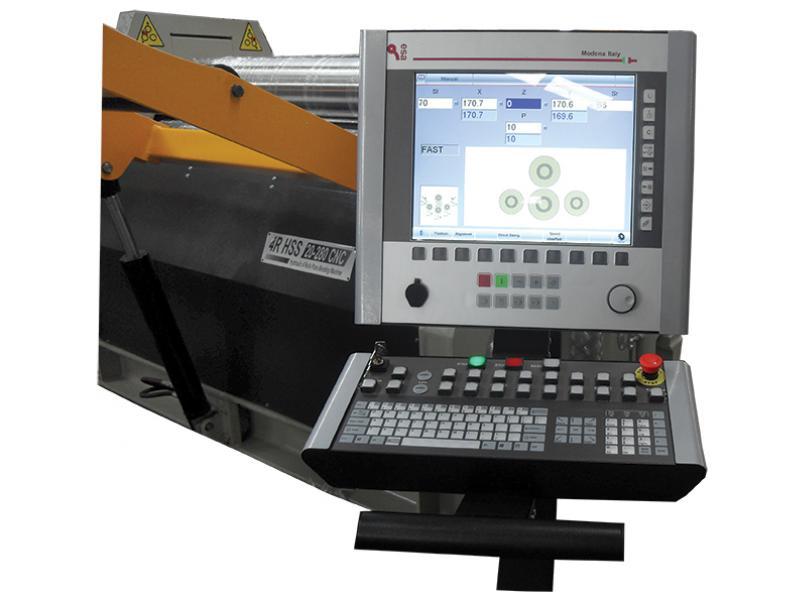

▶ Automation with NC and CNC control
▶ Overhead crane for large diameters
▶ Hydraulic lateral side supports for large diameters
▶ Hydraulic plate ejector
▶ Ground and polished rolls
▶ Infinitively variable speed system
▶ Electronic balancing system (Ø280 -320 -350 -380 -400 -460)
